Foil Drive Assist MAX

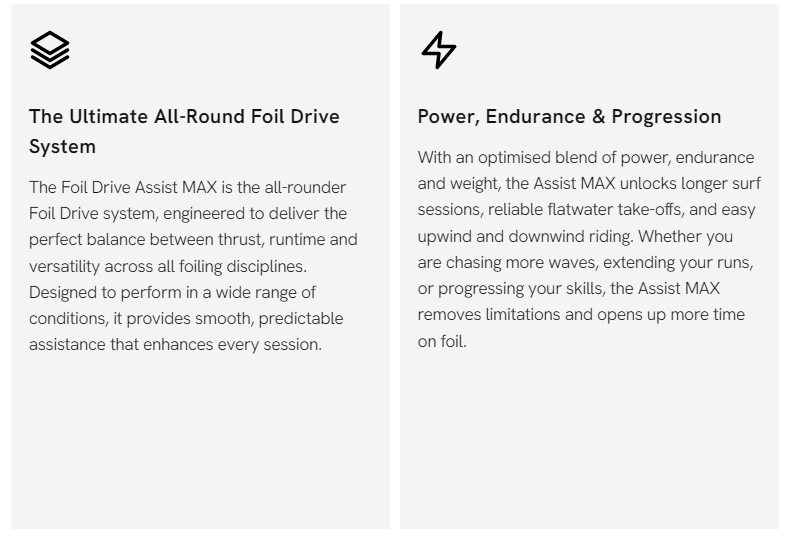

The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.
Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.
The all rounder, for all disciplines and abilities.

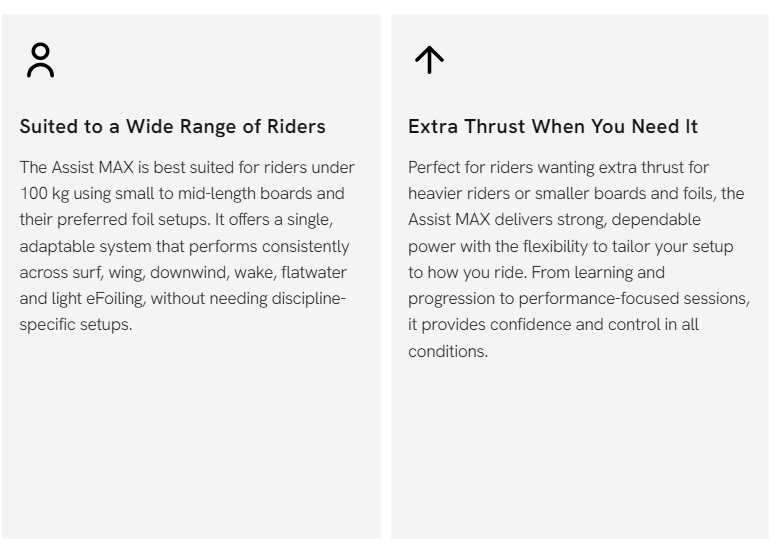

The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
Tech Specs

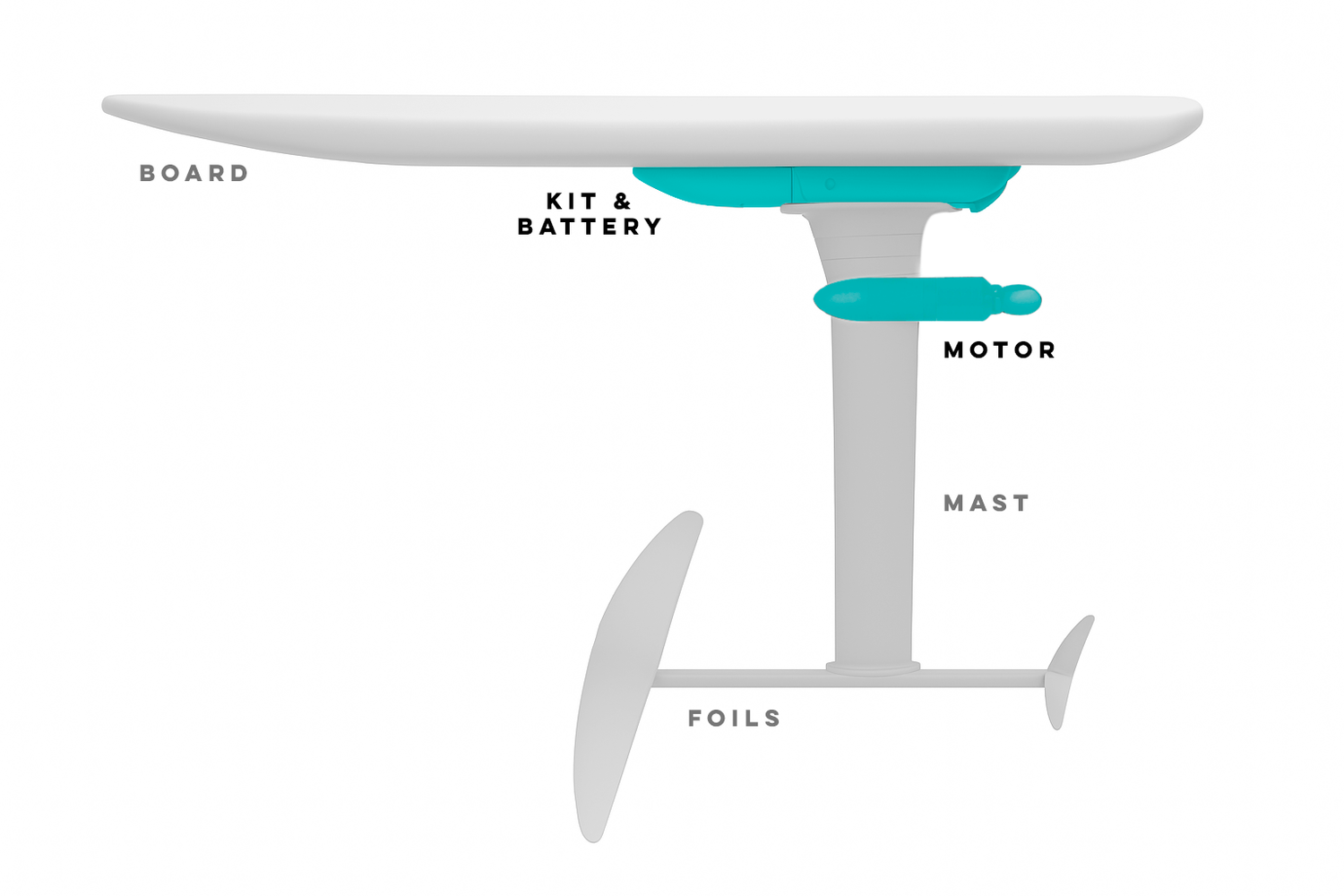

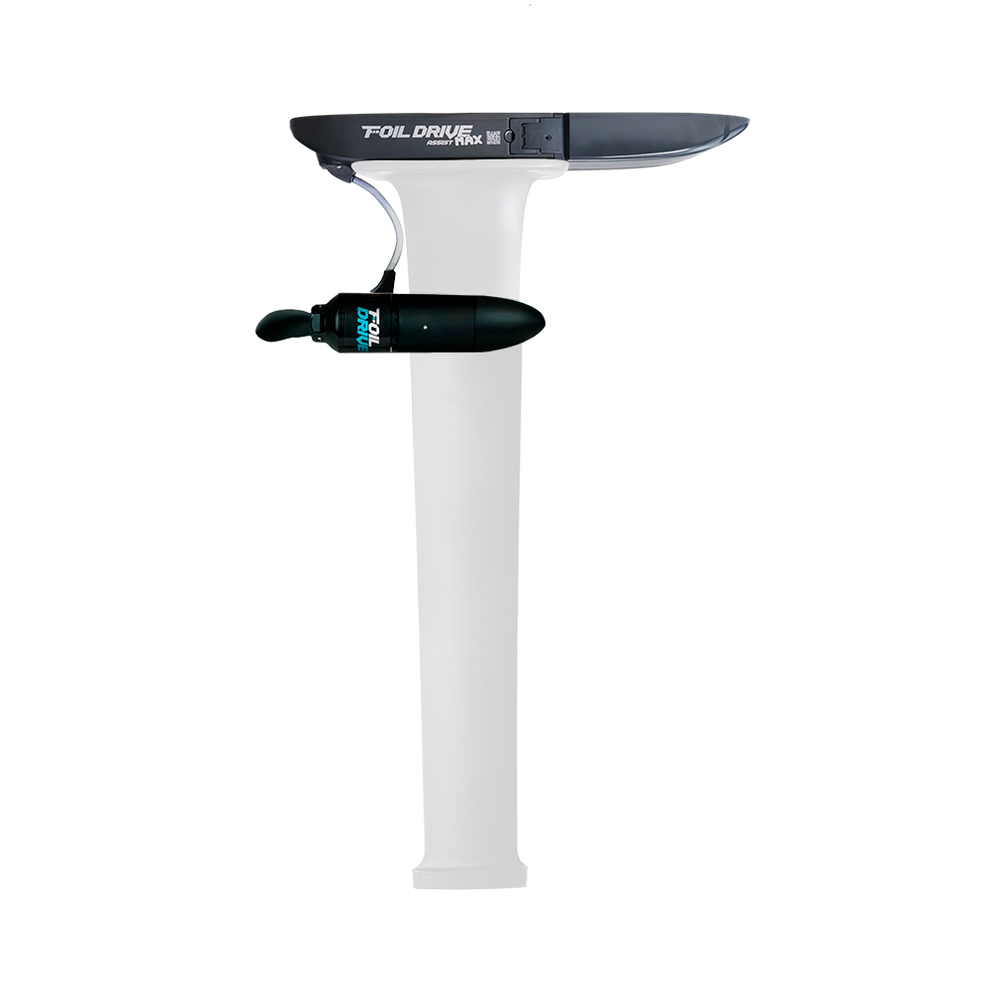

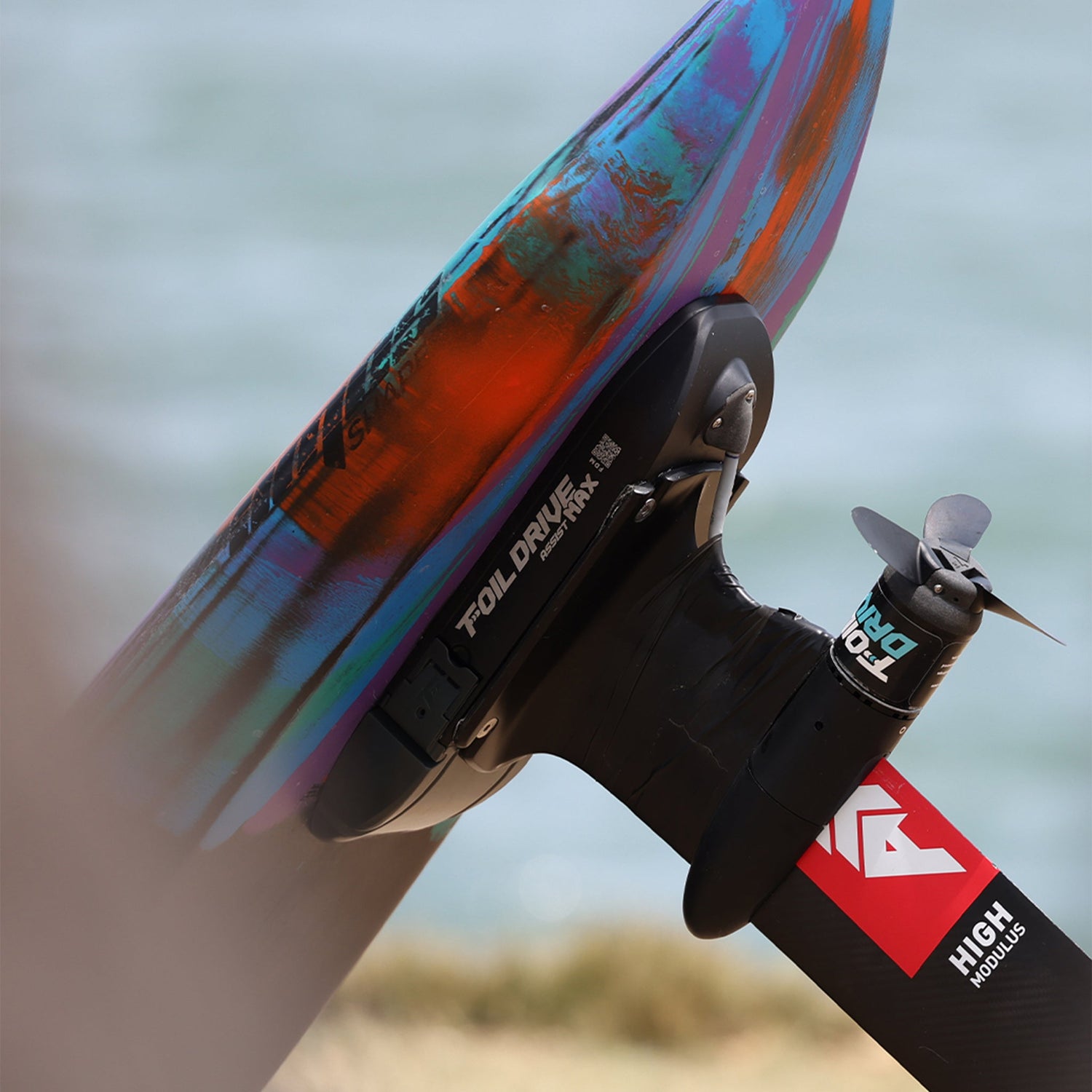

Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.
Note: Boards with Carbon Tracks may require an additional External Antenna.

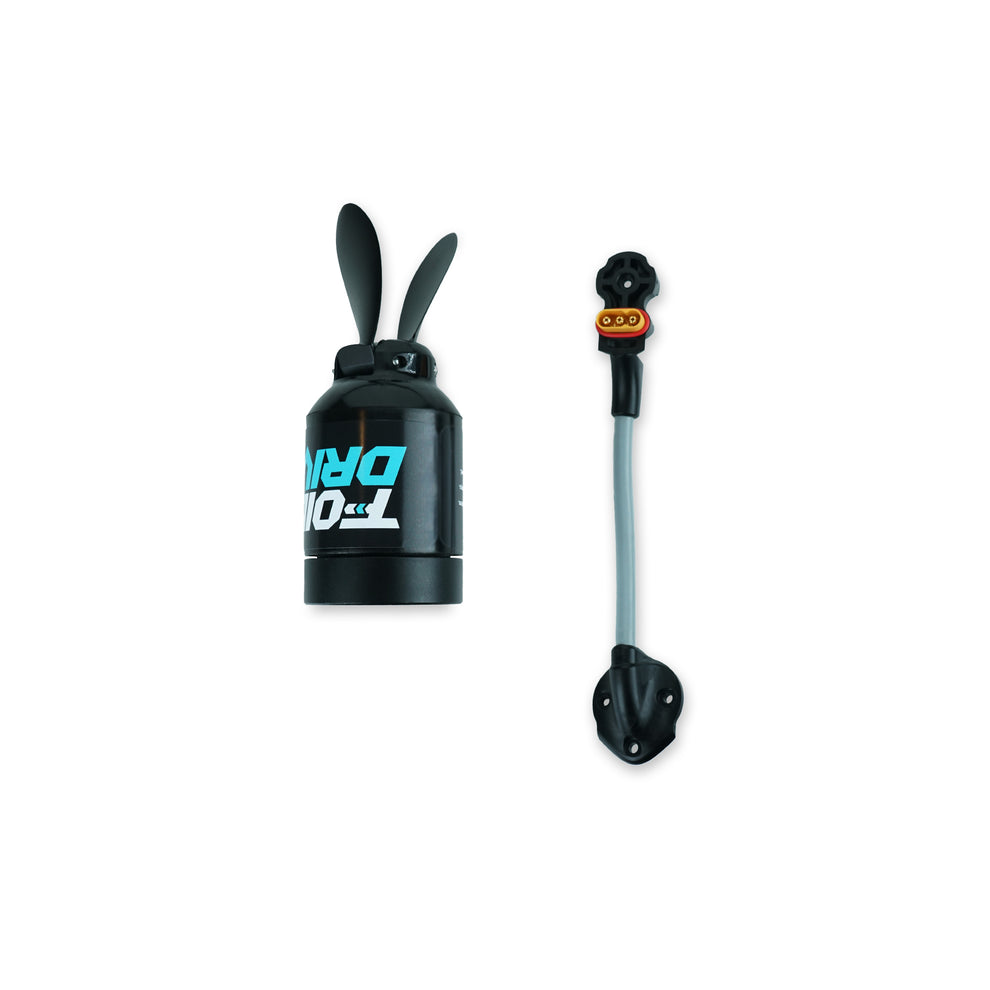

Assist MAX Maximum Thrust:
- 27.5kg (60.6lbs) with Three Blade Alloy Props

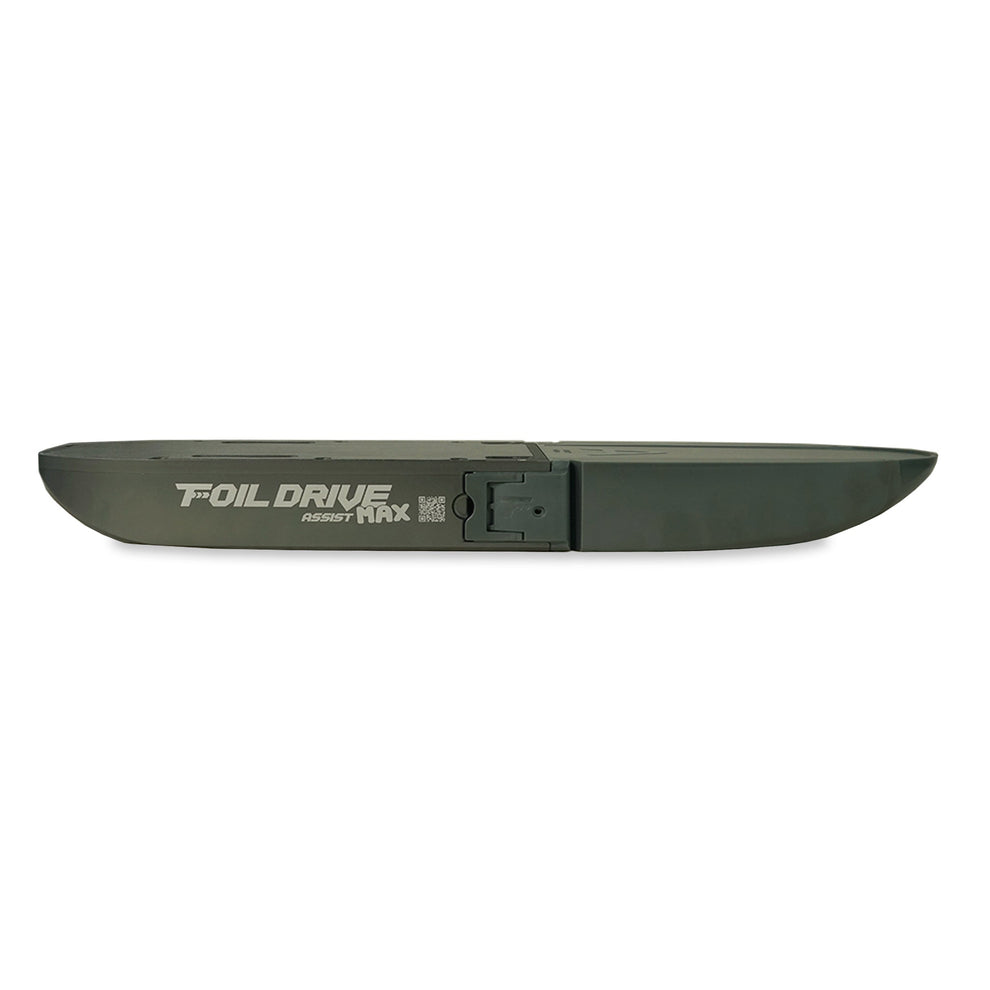

Assist MAX Dimensions
- Max. Dimensions: L525 x W125 x H50mm
- Min. Dimensions: L415 x W125 x H50mm
Assist MAX Total Install Weight
- 4.8-5.8kg (10.5-12.7lbs) depending on battery
Assist MAX Voltage & Runtime
- Operating Voltage: 40V
- Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
Assist MAX Battery
- Recharge Time: Appx. 2-3.5hrs (Power Battery)
- Batteries: IP68 rated dust and water resistant.
MAX High Power Battery
MAX Power Battery
MAX Sport Battery
MAX Travel Battery
40V Foil Drive Chargers
Features
The all-rounder, find the balance between runtime and performance-in-one.
